SDR防尘圈 活塞杆专用
材质:RN906(RF905)
温度：-25~100(-5~150)
介质：一般石油液壓油、水—乙二醇液壓液 水—油乳液液壓液（一般石油液壓油 磷酸酯液壓油）。
特征：防止外部塵埃進入，保護密封件及支撐導向環。SDR防塵圈是最受歡迎的嵌入型防塵密封圈。
用途：液壓缸/氣缸、低壓液壓缸 /氣缸、主要用於一般室內環境。

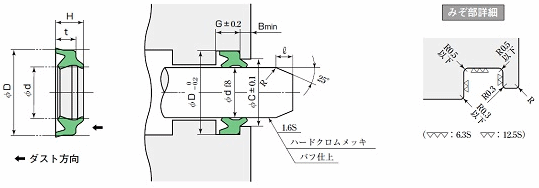

SDR防尘圈尺寸表
| 指示代码 | ||||
| SDR防尘圈 | ||||
| 標準 | 耐熱用 | 耐寒用 | HNBR | |
| （RN 906） | （RF 905） | （RN 903） | (RP902) | (RP903) |
| SDR-0012001N906 | | | | |
| SDR-12.5 | | | | |
| SDR-14 | | | ● | ● |
| SDR-16 | SDR-16F | | ● | |
| SDR-18 | SDR-18F | | ● | ● |
| SDR-20 | SDR-20F | | | |
| SDR-22 | SDR-22F | | | ● |
| SDR-22.4 | SDR-22.4F | SDR-22.4N | ● | ● |
| SDR-25 | SDR-25F | SDR-25N | | |
| SDR-0025404N906 | | SDR-0025402N903 | | |
| SDR-0026001N906 | | | | |
| SDR-28 | SDR-28F | | ● | ● |
| SDR-30 | SDR-30F | | | |
| SDR-31.5 | SDR-31.5F | | | |
| SDR-32 | | | | |
| SDR-35 | SDR-35F | | | |
| SDR-35.5 | SDR-35.5F | SDR-35.5N | ● | ● |
| SDR-36 | SDR-36F | | | ● |
| SDR-0038001N906 | | | | |
| SDR-40 | SDR-40F | | | |
| SDR-45 | SDR-45F | | ● | ● |
| SDR-50 | SDR-50F | SDR-50N | | |
| SDR-53 | SDR-53F | | | |
| SDR-55 | SDR-55F | | | |
| SDR-56 | SDR-56F | | | ● |
| SDR-60 | SDR-60F | | | |
| SDR-63 | SDR-63F | SDR-63N | | ● |
| SDR-65 | SDR-65F | | | |
| SDR-67 | SDR-67F | SDR-67N | | ● |
| SDR-70 | SDR-70F | | | ● |
| SDR-71 | SDR-71F | SDR-71N | | ● |
| SDR-75 | SDR-75F | SDR-75N | | |
| SDR-80 | SDR-80F | | | ● |
| SDR-85 | SDR-85F | SDR-85N | | ● |
| SDR-90 | SDR-90F | | | ● |
| SDR-95 | SDR-95F | SDR-95N | | |
| SDR-100 | SDR-100F | SDR-100N | | ● |
| SDR-0105002N906 | | | | |
| SDR-106 | SDR-106F | | ● | ● |
| SDR-0110002N906 | | | | ● |
| SDR-112 | SDR-112F | | | ● |
| SDR-0115002N906 | | | | |
| SDR-118 | SDR-118F | SDR-118N | | |
| SDR-0120001N906 | | | | |
| SDR-125 | SDR-125F | | | ● |
| SDR-0127003N906 | | | | |
| SDR-132 | SDR-132F | | | |
| SDR-140 | SDR-140F | | ● | ● |
| SDR-145 | SDR-145F | | | |
| SDR-150 | SDR-150F | | | |
| SDR-0153001N906 | | | | |
| SDR-0155001N906 | | | | |
| SDR-160 | SDR-160F | | | ● |
| SDR-160A | SDR-160AF | | | |
| SDR-165 | SDR-165F | | | |
| SDR-0170001N906 | | | | |
| SDR-175 | SDR-175F | | | |
| SDR-180 | SDR-180F | | ● | ● |
| SDR-180A | SDR-180AF | | | |
| SDR-0190001N906 | | | | |
| SDR-0195001N906 | | | | |
| SDR-200 | SDR-200F | | | |
| | SDR-0205001F905 | | | |
| SDR-0210002N906 | | SDR-0210001N903 | | |
| SDR-0215001N906 | | | | |
| SDR-224 | SDR-224F | | | |
| SDR-0225001N906 | | | | |
| SDR-0230001N906 | | | | |
| SDR-250 | SDR-250F | | | |
| SDR-280 | SDR-280F | | | |
| SDR-0285001N906 | | | | |
| SDR-0290001N906 | | | | |
| SDR-0295001N906 | | | | |
| | ||||
| SDR-0300002N906 | | | | |
| SDR-315 | | | | |
| SDR-0320001N906 | | | | |
| SDR-0335001N906 | | | | |
| SDR-355 | | | | |
| SDR-0360002N906 | | | | |
| SDR-0400001N906 | | | | |
| SDR-0415001N906 | | | | |
| SDR-0420001N906 | | | | |
| SDR-450 | | | | |
| SDR-0480001N906 | | | | |
| SDR-0500001N906 | | | | |
| SDR-0505001N906 | | | | |
| SDR-0508001N906 | | | | |
| SDR-0600001N906 | | | | |
★订购时、咨询时、请按照指示代码进行提示。
★指示代码为蓝色的产品有库存。
